This system can measure electro characteristic not to move the OPC drum by setting the electrode
　　on the surface of the drum. It is possible to control freely the process to directly apply
　　the measurement condition on the electrode. Using this function, it can measure simply TOF
　　and acceleration test of the OPC drum.

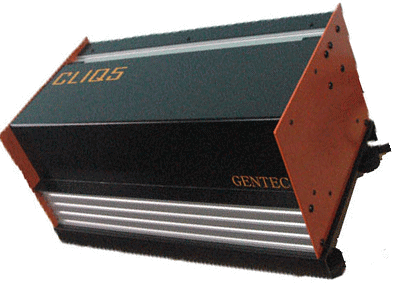

C_LIQ 　　This is the new concept making the electrode by directly contacted liquid on the surface of the OPC drum.

Spec Volt meter: Hivoltage return type 　　　　　　　　Range; ±0〜1KV 　 　　　　　　 Accuracy; ±0.2% shorter 　 　　　　　　 Response speed; 5mSEC Volt meter: Motionless speed type 　　　　　　　　Range; ±0〜1KV 　　　　　　　　Accuracy; ±0.5% shorter 　　　　　　　　Response speed; 10μSEC shorter Standard measurement program: 　　Contact area, memory phenomenon, dark decay, 　　light decay; pulse exposure is possible, 　　volt meter vs drum current to constant exposure, 　　exposure vs drum current to constant surface potential, 　　life test, TOF.
